Roof continous rooflights

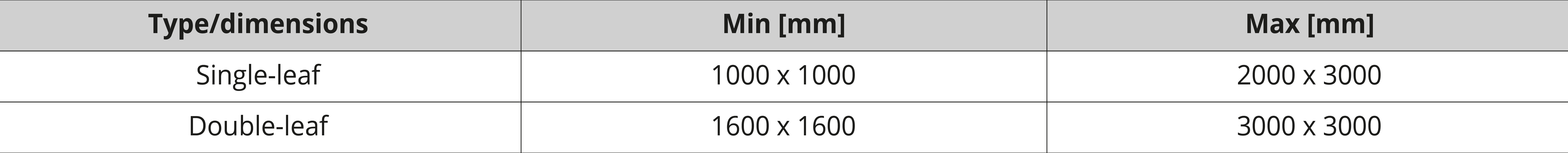

Dimension

Single-wing: 80-200cm x 80-260cm Double-wing: 160-300cm x 160-300cm

Certificate

Declaration of Permanent Performance with CE mark 1488-CPR-0042/W according to EN 12101-2:2003;

Characteristics

Roof continous rooflights take the form of long and light-transmitting surfaces, mounted on flat roofs (up to 15°). Their task is to illuminate usable areas with natural light, which, coming through the openings, is evenly distributed inside the objects. It is an excellent complement or substitute for window lighting. Roof continous rooflights are widely used in large-scale objects: production halls, logistics centers, warehouses, sports facilities, skyscrapers, shopping malls.



Continous rooflights can be made in two variants: triangular or curved. It is possible to equip the strips with ventilation dampers to ensure natural ventilation of objects and smoke damper for smoke and heat extraction in case of fire.

Technical description

The basis of continuous rooflights:

made of galvanized steel sheet 1.5 mm - 3 mm thick and 150 mm - 750 mm high. The bases require insulation of mineral wool, polystyrene foam or PIR foam with a thickness of 50 mm to 120 mm.

Types of covers:

Arch

Triangular

Design:

Aluminum profiles connected to each other by fasteners, forming a rigid and lightweight frame in which the covering is fixed.

Cover:

is made of cellular polycarbonate or multi-wall polycarbonate combined with a special fabric, for a fire retardant cover complying with the Broof (t1)/fire retardant class.


An additional element of continuous rooflights can be a smoke damper or ventilation flap.


The smoke damper is controlled by a 24V electric drive or a pneumatic drive. For the ventilation function, the pneumatic drive is equipped with an additional 230V motor.

Technical parameters

  • Widths range from 0.8 m to 6 m for curved continuous rooflights or from 0.8 m to 4.5 m for triangular continuous rooflights;

  • DL 750 – standard resistance to downward directed load up to 750 N/m2 (possibility to increase the parameter to DL 2500)

  • UL 1500 – load on top up to 1500 N/m2

  • SB 300 - 1200 – soft and heavy body impact up to 1200 N/m2;

  • 1,1-2,5 W/m2K – heat transfer coefficient for the entire product. The value of the coefficient depends on the choice of the variant of the cover and the base (Solar Control, light transmittance up to 0%);

  • Smoke dampers built into rooflights (+ possible ventilation option)

  • SL250 / SL550 / SL900 – reliable operation of smoke dampers under loads of 250 N/m2, 550 N/m2 and 900 N/m2, respectively;

  • High values of smoke extraction parameters specified in the Deklar ation of Constancy of Performance with CE mark 1488-CPR-0042/W in accordance with EN 12101-2:2003

Additional options:

  • Fall protection grilles/nets and/or mosquito netting;

  • Guardrails to prevent falls;

  • The inner side of the base can be painted in basic RAL 9010, 9002, 9003 colors;

  • Retrofitting of smoke and ventilation system, e.g. smoke control unit (Actulux, AFG), smoke detectors, alarm buttons

Additional option

  • Up to 10-year warranty on polycarbonate panels and airtightness

  • 2 year warranty on actuators

  • Designing and optimizing solutions tailored to customers' needs

  • Support in the preparation of technical documentation

  • providing technical advice at every stage
